G02-OP

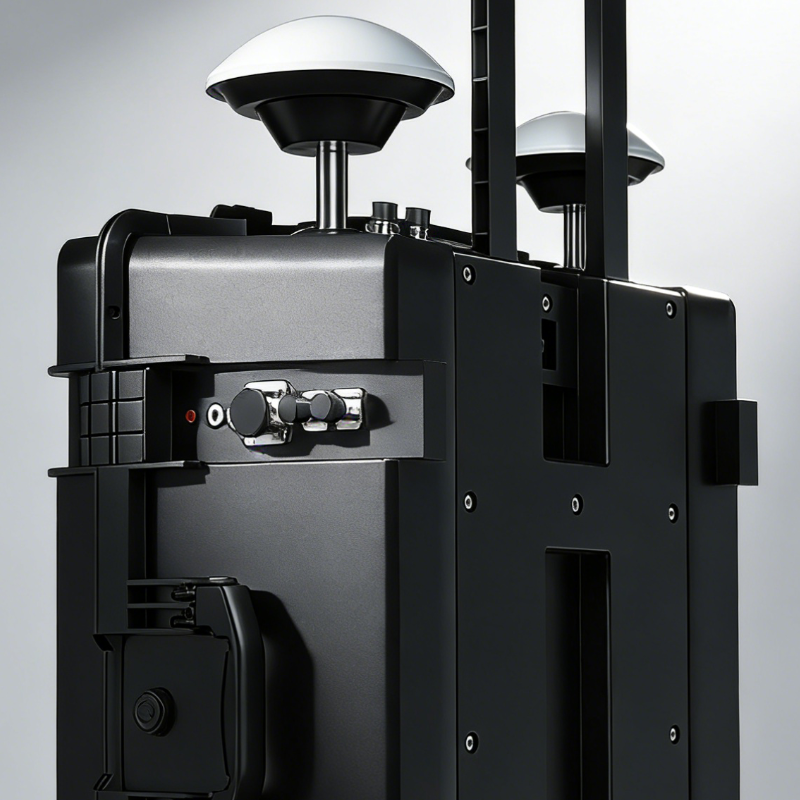

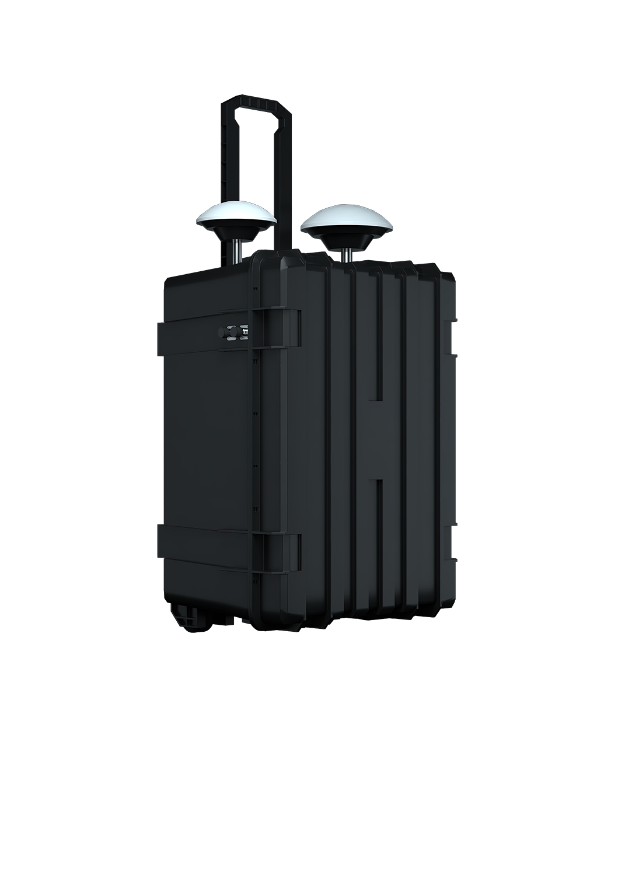

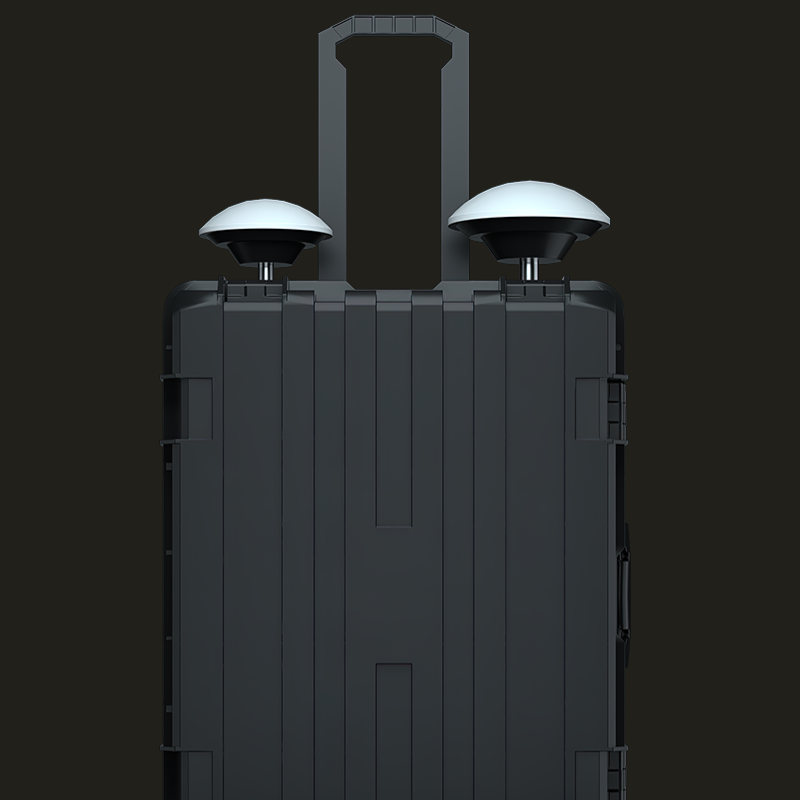

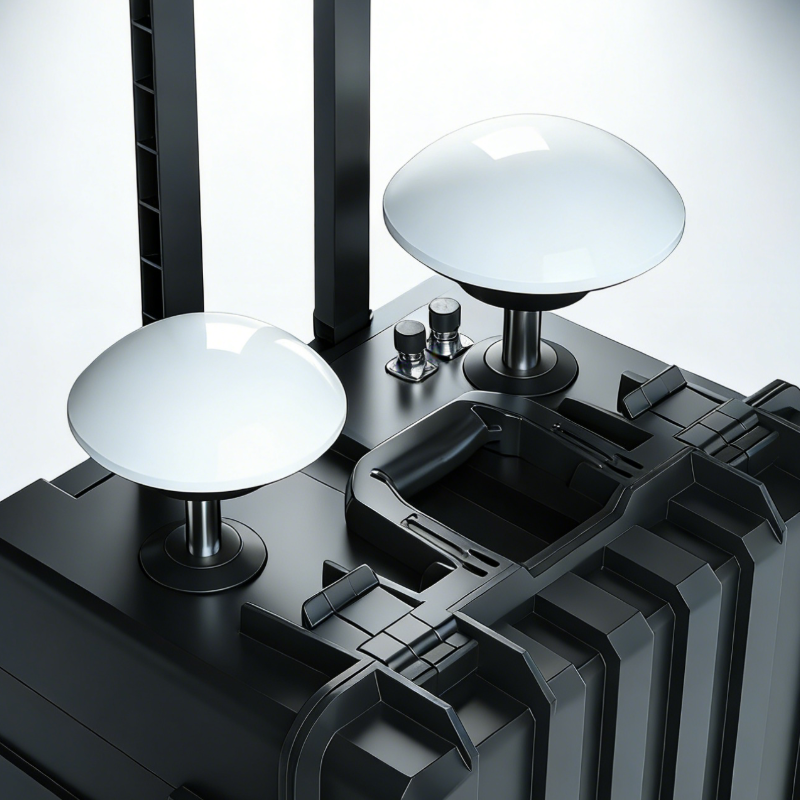

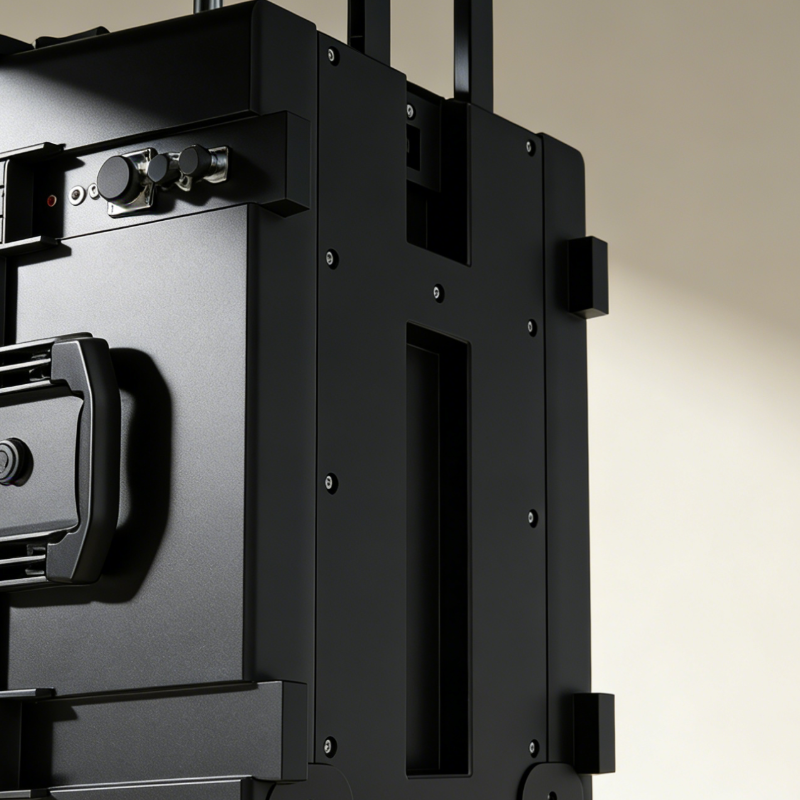

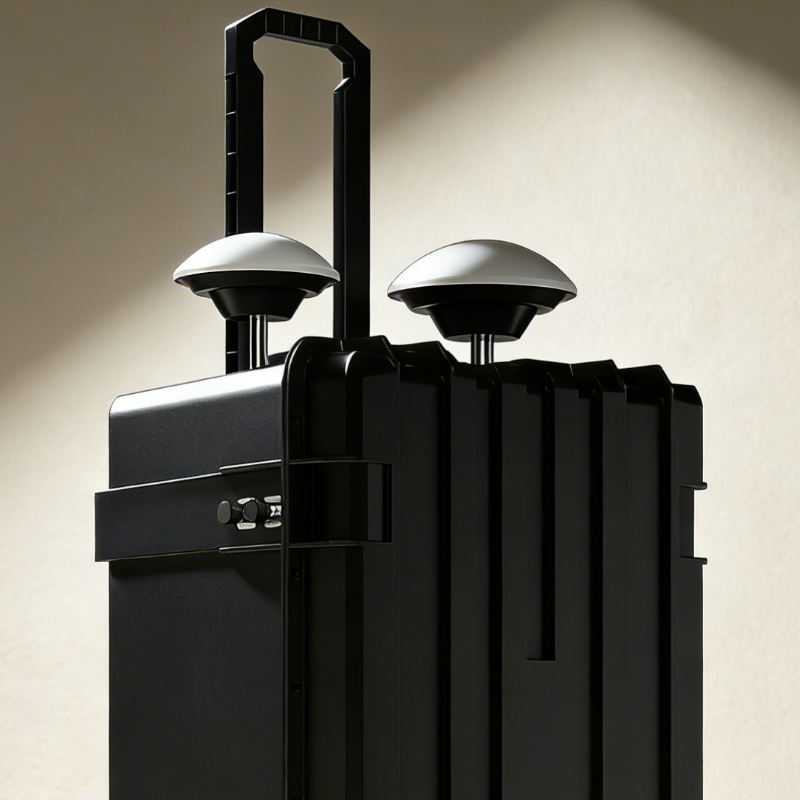

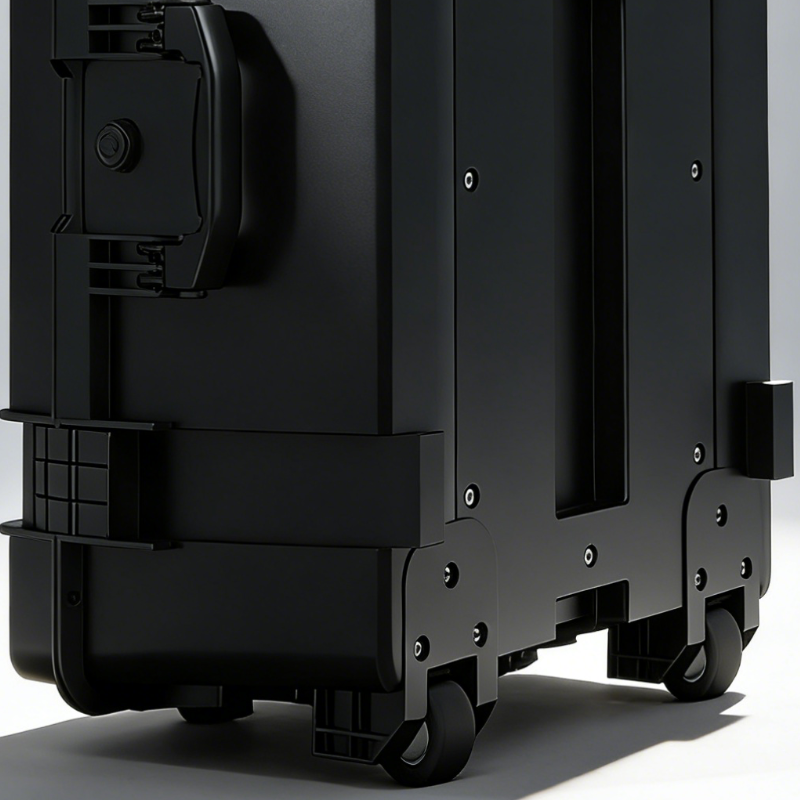

G02-OP GNSS Spoofer
Omnidirectional, Flexible, Accurate
Product Introduction
GNSS spoofer is the generation and transmission of fake GNSS signals, with the aim to lead a GNSS receiver astray, possibly without the GNSS receiver being aware of the attack. GNSS spoofer overtake the rogue drone's navigation link and manipulate the information within it. The spoofer sends a new signal to the drone, replacing the communication with GNSS satellites, such as GPS or GLONASS. By dynamically altering the GNSS coordinates in real-time, the drone can be controlled by the spoofer and flown to a safe zone.
Product Features
• Set the no-fly zone to make the drone can not take off or landing
• Set the displacement direction and displacement speed of the drone to make the drone move in a straight line or in a circle
• Cooperate with radar to capture drones in the coverage area and guide them to a safe area specified by the user
• Working hours: 7*24, signal transmission can be turned on and off remotely
Product Parameter
• Spoofing bands: BDS B1, GPS L1, GLONASS L1, Galileo E1
• Spoofing range: 0.5-1.5km
• Azimuth coverage: 360°
• Battery life: ≥8h
• Operating temperature: -25℃/55℃
• Storage temperature: -40℃/70℃
• IP rating: IP54
• Dimensions(W*D*H): 500*340*680mm
• Weight: ≤20.0kg
