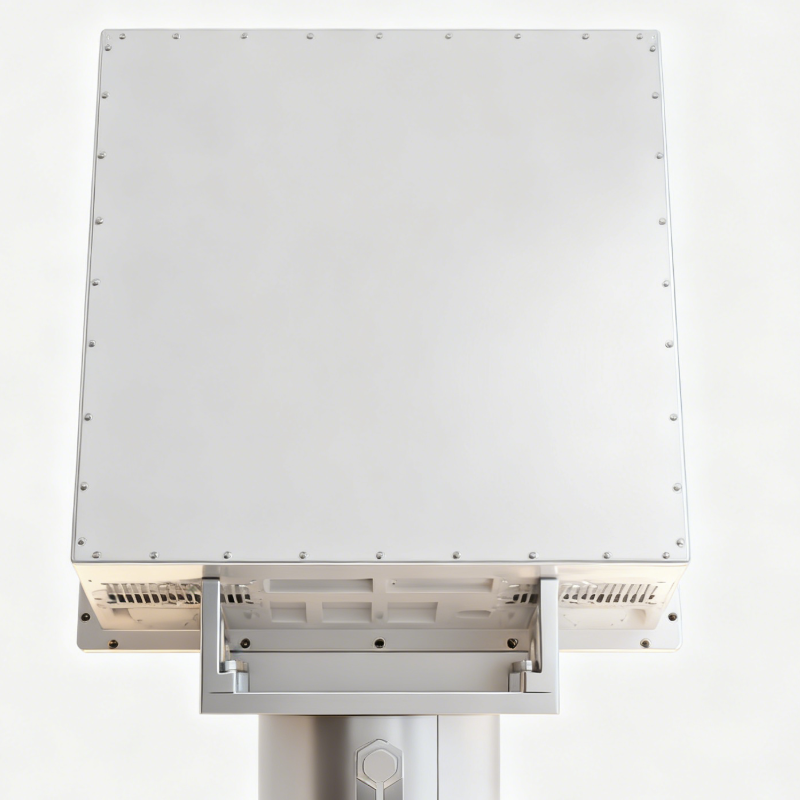

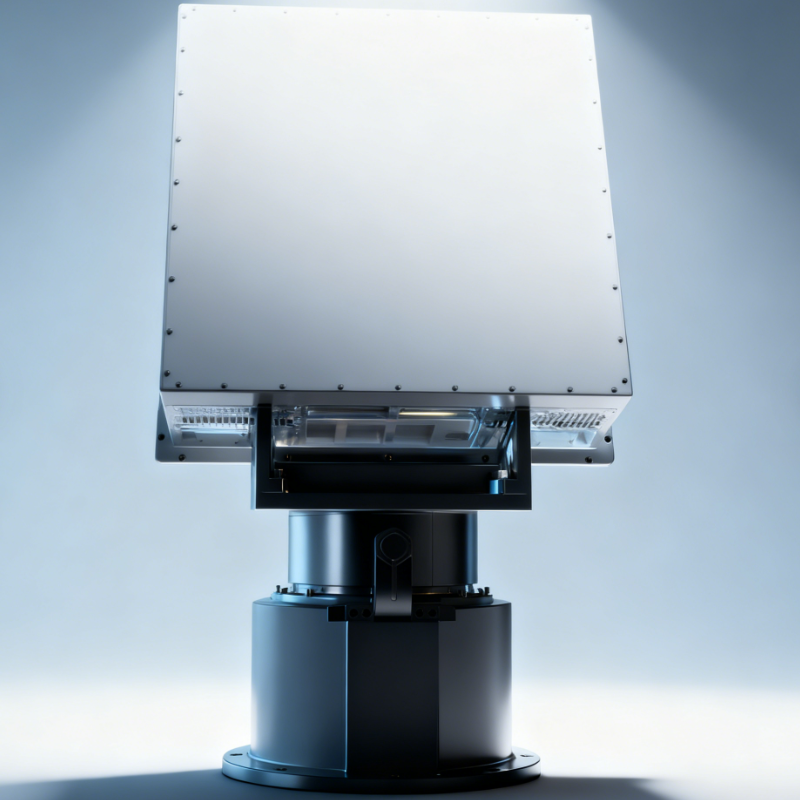

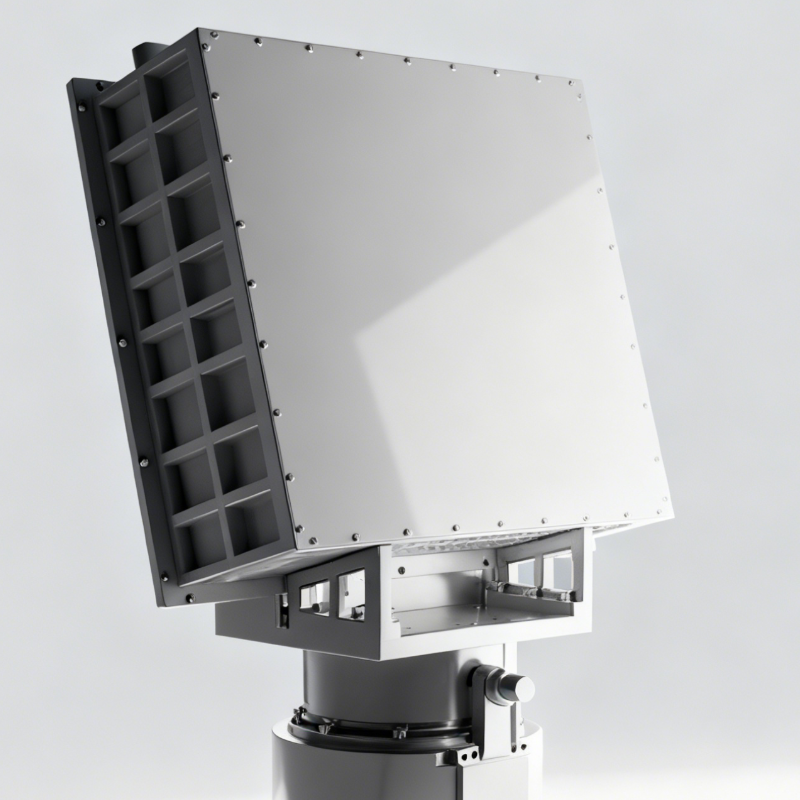

UAV Detection Radar R03-K

Product Features
•Detects low-slow-small (LSS) targets such as UAV(RCS=0.01㎡)
•Provides accurate drone positioning, guiding defeat device prevent the drone from reaching its target
•Ku band providing not only high accuracy, but also eliminating electromagnetic interference in
sensitive environment such as airport
•Lightweight equipment, easy set-up and withdrawal by a single person
Product Parameters
•Frequency band: Ku
•Maximum detection range: ≥5km(RCS=0.01㎡)
•Minimum detection range: ≤150m
•Azimuth coverage: 360°
•Elevation coverage: 60°
•Operating temperature: -25℃/55℃
•Storage temperature: -40℃/70℃
•IP rating: IP65
•Dimensions(W*D*H): 350*350*570mm
•Weight: ≤27.0kg
