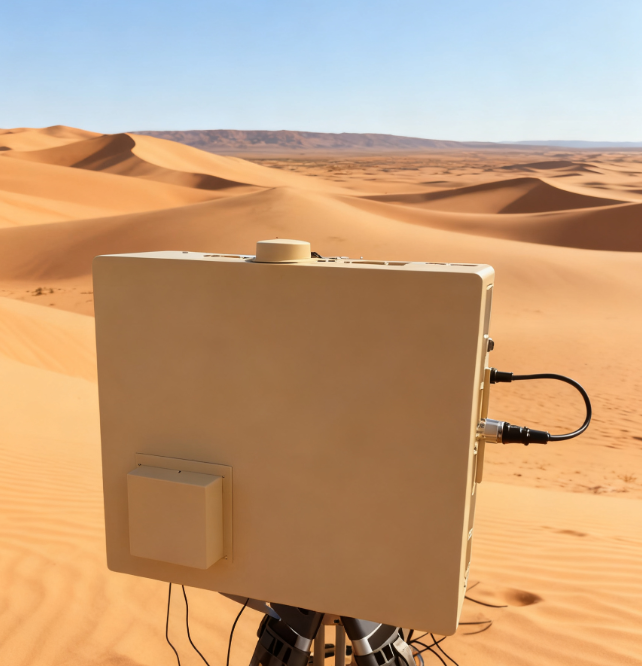

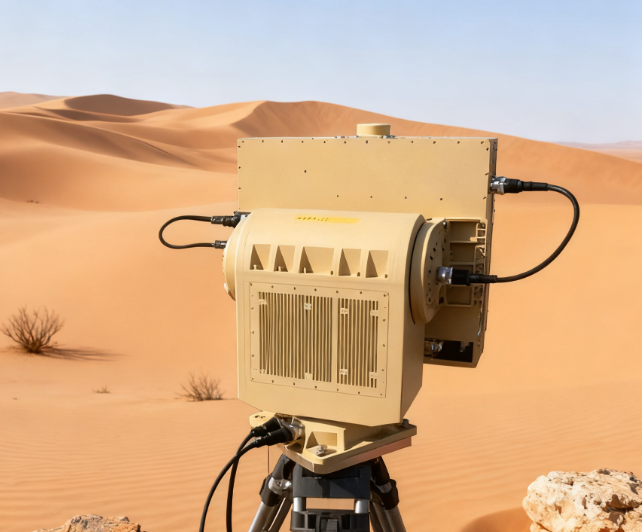

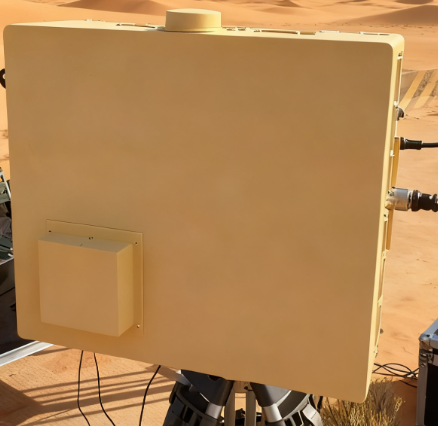

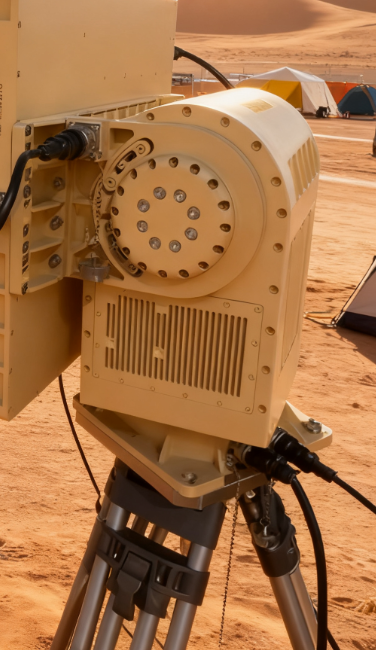

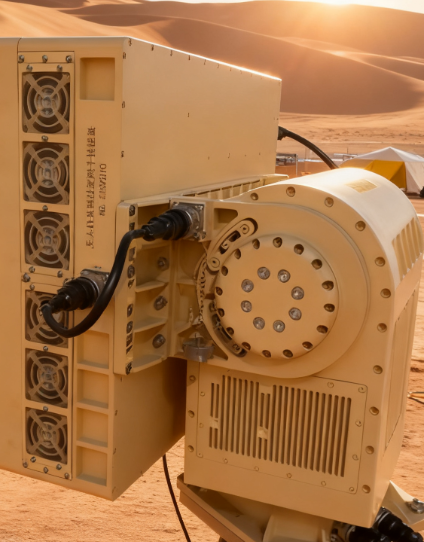

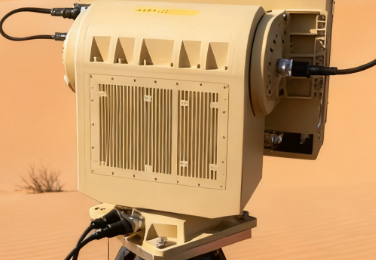

Jamming & Spoofing Cannon JS06

Product Features
•Support multiple signal styles of jamming source: CW, AM, FM, BPSK, QPSK, OQPSK, MSK, GMSK,
frequency hopping and other modulation methods
•Support multiple signal interference styles: single tone, swept frequency, frequency hopping, comb
spectrum, swept comb spectrum, etc.
•Support all-band signal interference
•Instantaneous interference in single channel bandwidth is greater than 500MHz, the frequency of
simultaneous interference bandwidth is greater than 2500MHz
•Multi GNSS spoofing bands
•Under the guidance of radar, device can spoof the UAV to the designated place
Product Parameters
•Effective frequency bands: 300MHz- 6000MHz
•Effective distance: ≥10km
•GNSS spoofing bands: GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2,Galileo E1, QZSS L1
•GNSS spoofing range: ≥50km
•GNSS jamming range: ≥20km
•Azimuth coverage: 360°
•Elevation coverage: -5°-80°
•Power supply: AC 220V
•Operating temperature: -25℃/55℃
•Storage temperature: -40℃/70℃
•IP rating: IP65
•Dimensions(W*D*H): 690*540*500mm
•Weight: ≤64.0kg
