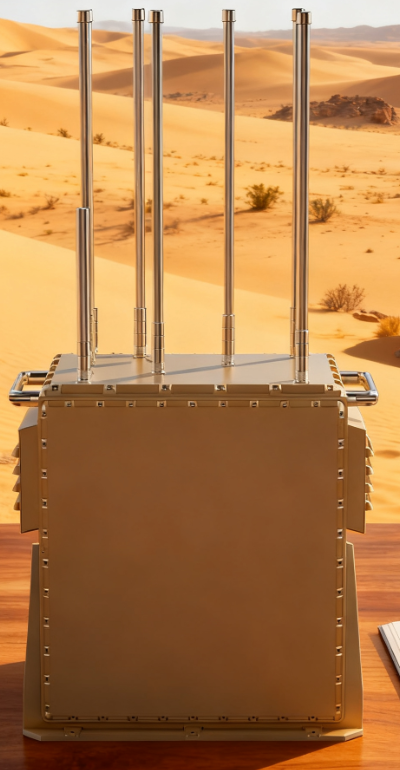

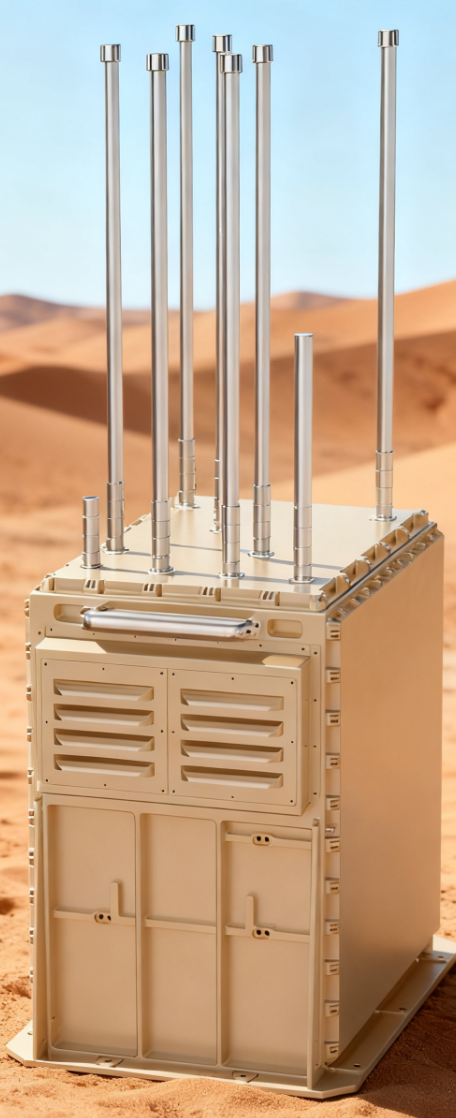

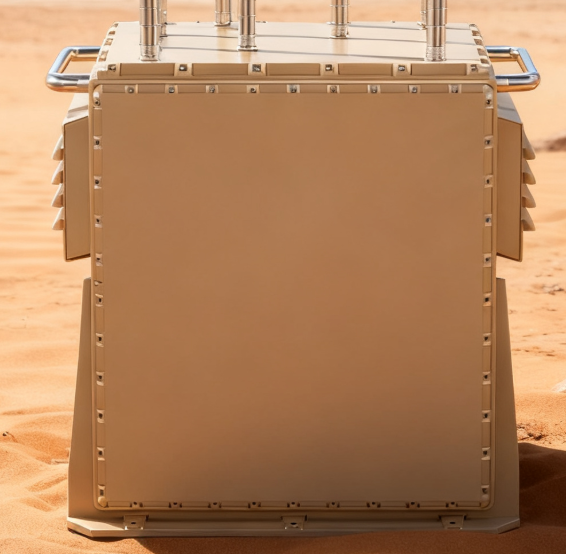

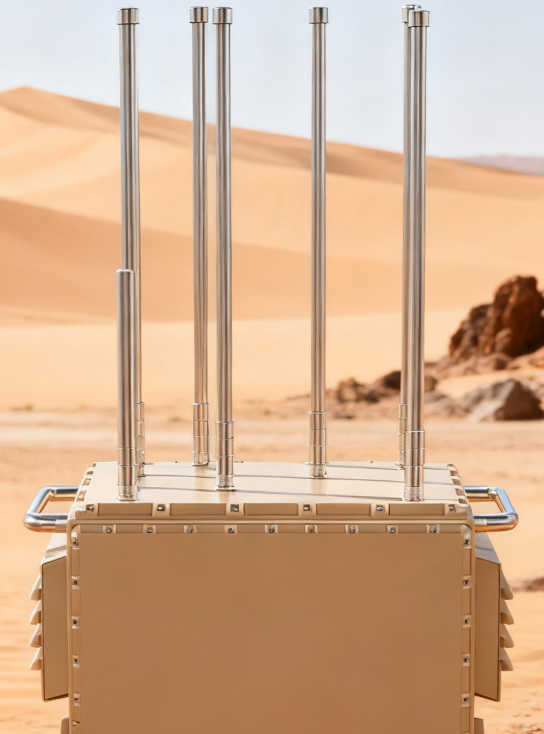

UAV Countermeasure ALL-in-One Device FJS01

Product Features
•Detection capability: DJI, Autel and other types of drones
•Decoding capability: For DJI series and remote ID drone, it can locate the drone and remote control
(pilot)
•Wide-band: covering ISM and its extended frequency bands
•Multi-band GNSS spoofing: spoofing signal drives the drone away in a straight line or in a circular
motion
•Automatic: according to the preset strategies, the countermeasure can be deployed automatically
Product Parameters
A. Detecting
•RF spectrum detection: 400MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz
•DJI and remote ID decoding: SN, model, position (longitude, latitude and azimuth), speed, height,
flight path and pilot position
B. Jamming
•Effective frequency bands: 400MHz, 900MHz, 1.2GHz, 1.5GHz, 2.4GHz, 5.2GHz, 5.8GHz (Customizable)
C. Spoofing
•Spoofing bands：GPS L1/L2, GLONASS L1, BDS B1, Galileo E1
D. System
•Countermeasure range: Up to 5km
•Azimuth coverage: 360°
•Power supply: AC 220V/DC 310V
•Operating temperature: -25℃/55℃
•IP rating: IP65
•Dimensions(W*D*H): 630*440*1530mm
•Weight: ≤78.0kg
