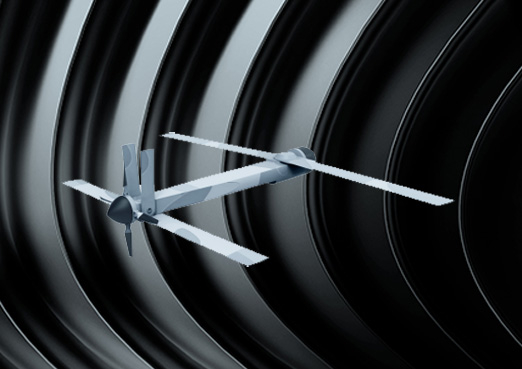

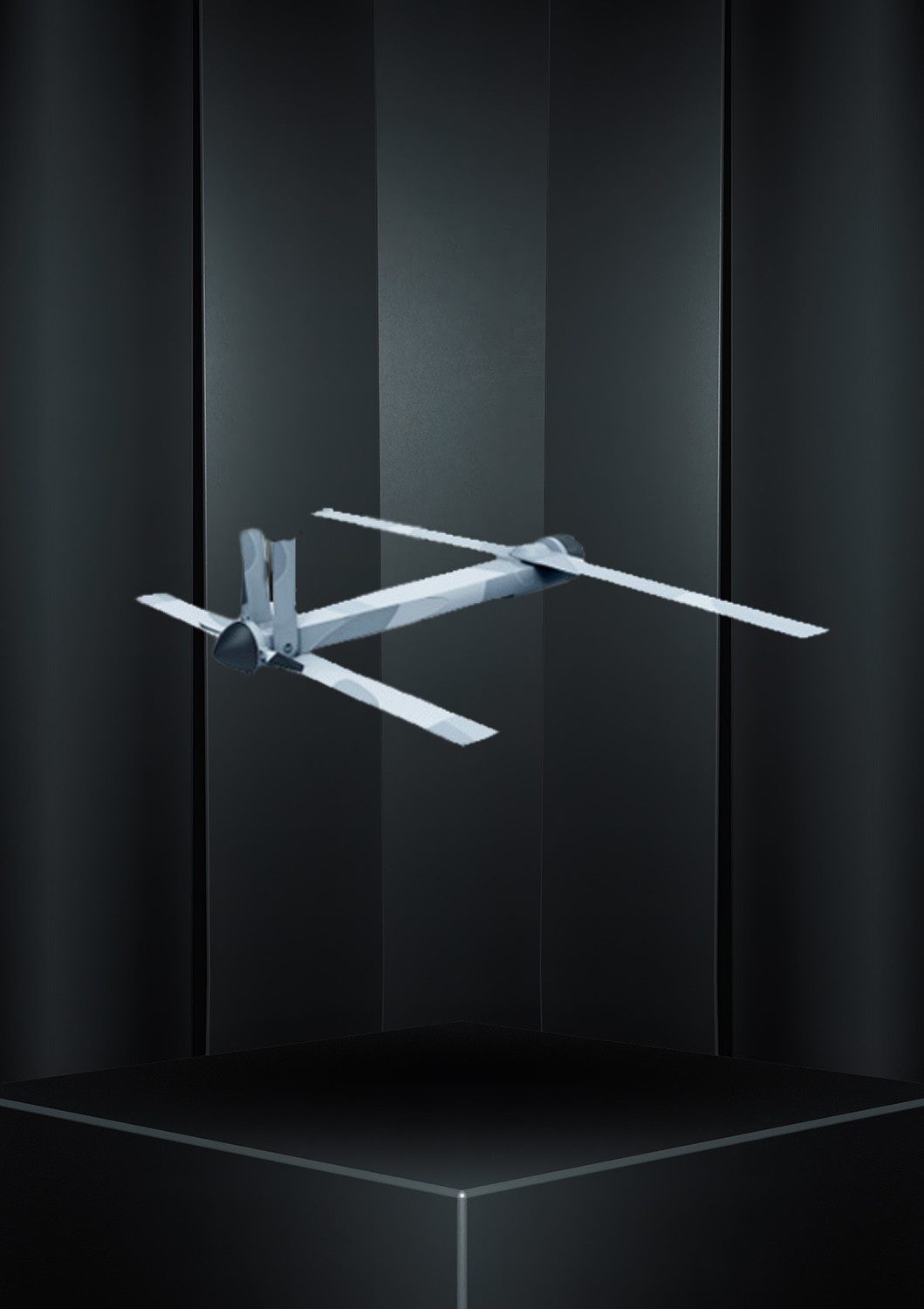

140 Electric Folding Wing Drone consists of five main parts : body structure, avionics system, power system, take-off and landing system and ground control station. The body structure is composed of a detachable modular body, which is convenient to carry and can be assembled and taken off in a short time. The avionics system is composed of flight control computer, sensor, payload, wireless communication and air-electric battery to complete the needs of the aircraft control system. The power system is composed of power battery, propeller and brushless motor, which provides the power needed for aircraft flight.
Product Features
a) Launch from inside the folded wing barrel, multiple aircraft can be launched at a time, and multiple aircraft can perform the same. One mission can also perform different missions.
b) The aircraft will be guided by Beidou/GLONASS /GPS/Galileo after takeoff.
c) Coordinates can be entered directly for route planning before takeoff.
d) Automatically enter the mission route after launch and take off, and the flight ends at the last coordinate point.
e) The communication link can be selected to monitor the whole process of multiple aircraft, flight trajectory or send the return order in the middle Order.
f) The take-off mode is a one-time gas cylinder high pressure gas launch take-off, can matrix multiple launch take-off.
g) Control radius 30 KM.
h) Support later upgrade installation pod/guidance.
Product Parameter
(1)Fuselage diameter: 140 mm
(2)Wingspan: 1620 mm
(3)Fuselage length: 1100 mm
(4)Maximum take-off weight: 12 kg
(5)Payload: 2 kg
(6)Cruising speed: 120 km / h
(7)Endurance: 50 min
(8)Range: 100 km
(9)Maximum flight altitude: 3000 m
(10)Take-off mode:catapult
(11)Terminal guidance mode:optics
