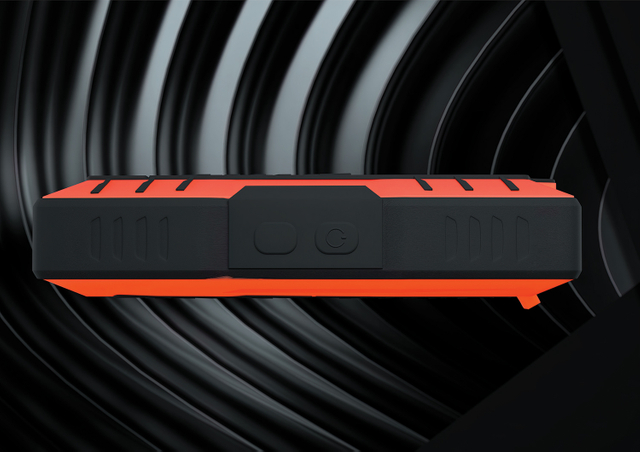

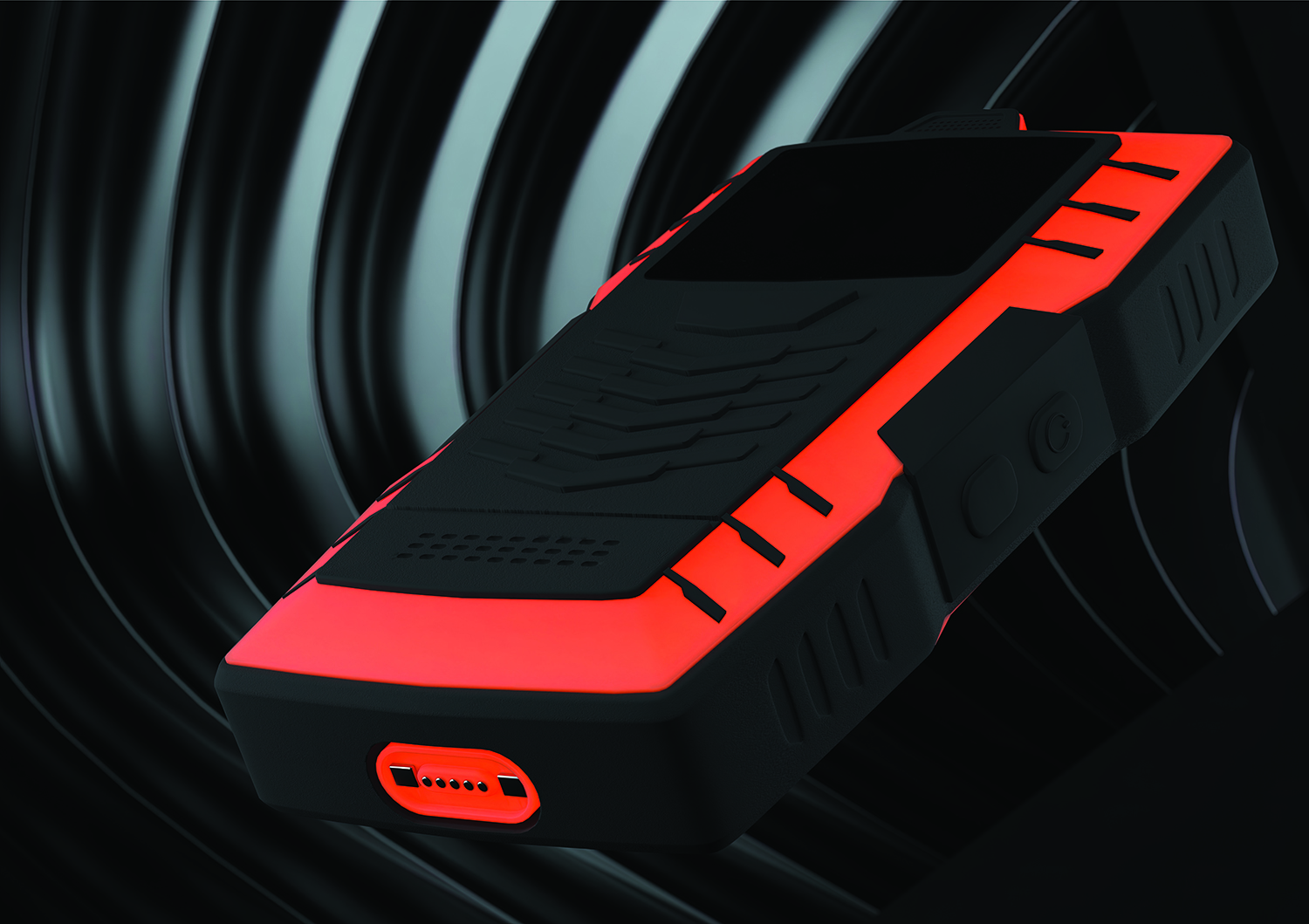

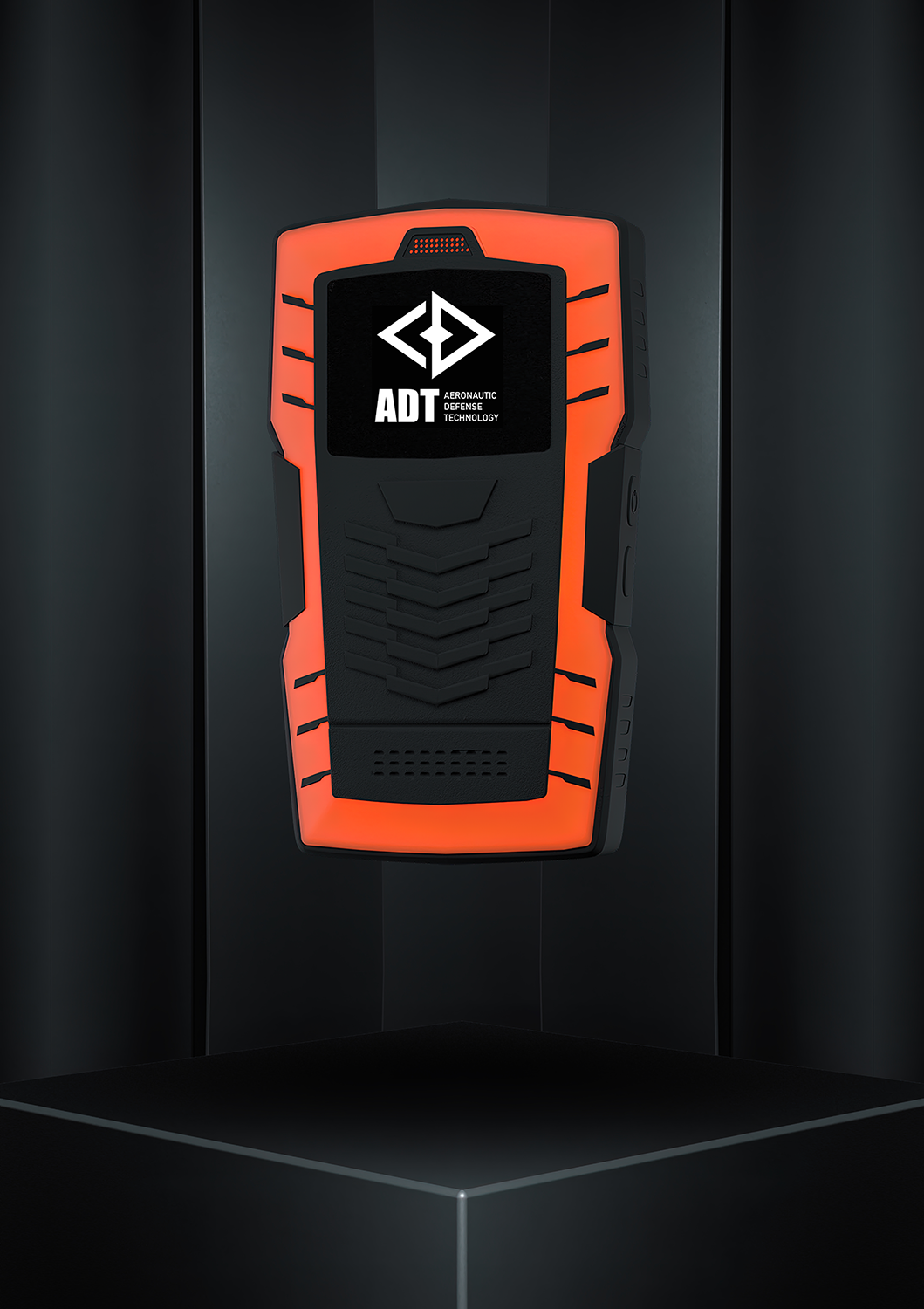

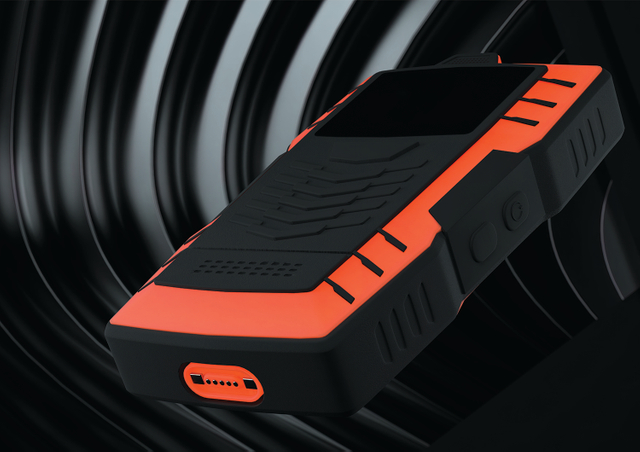

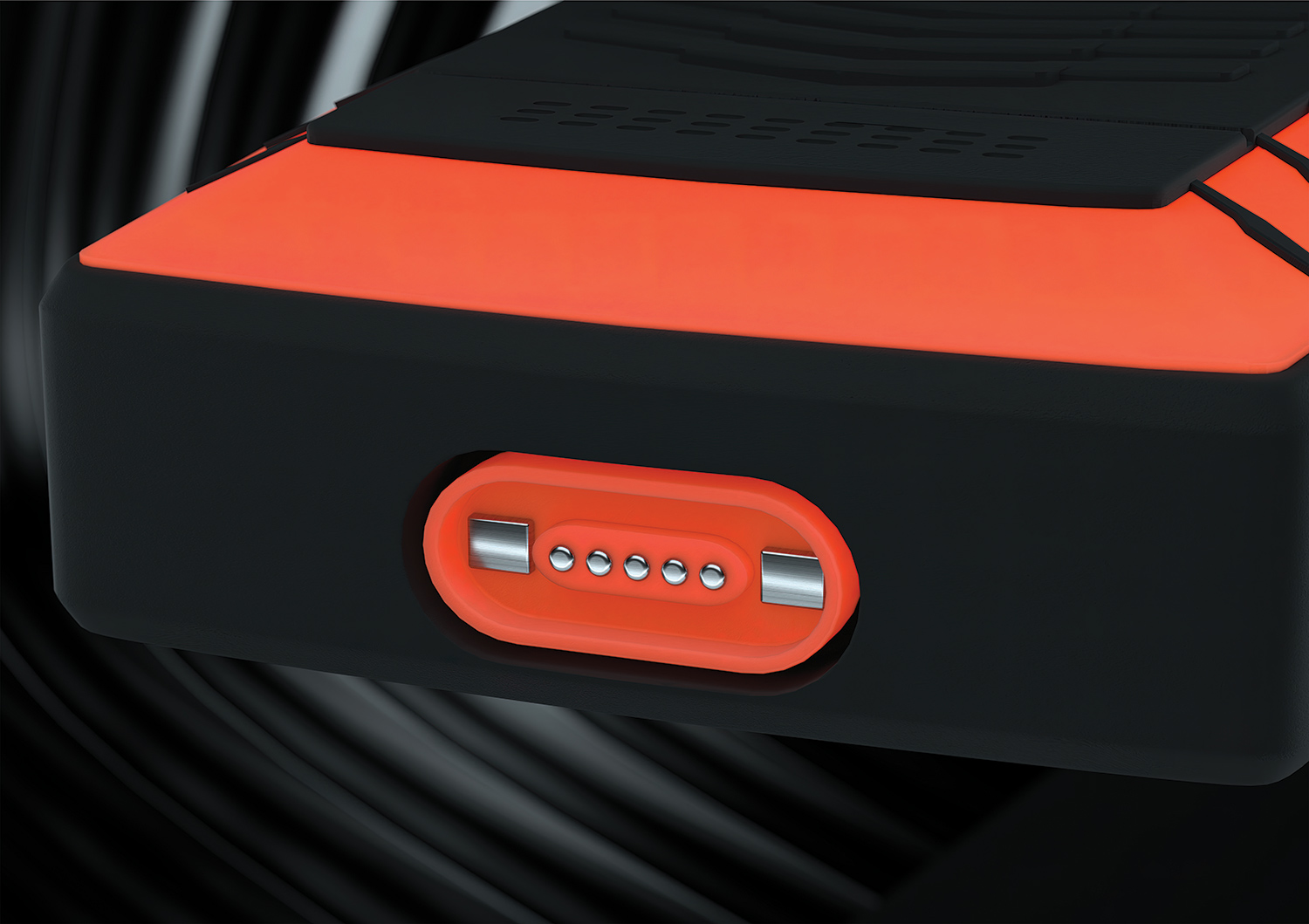

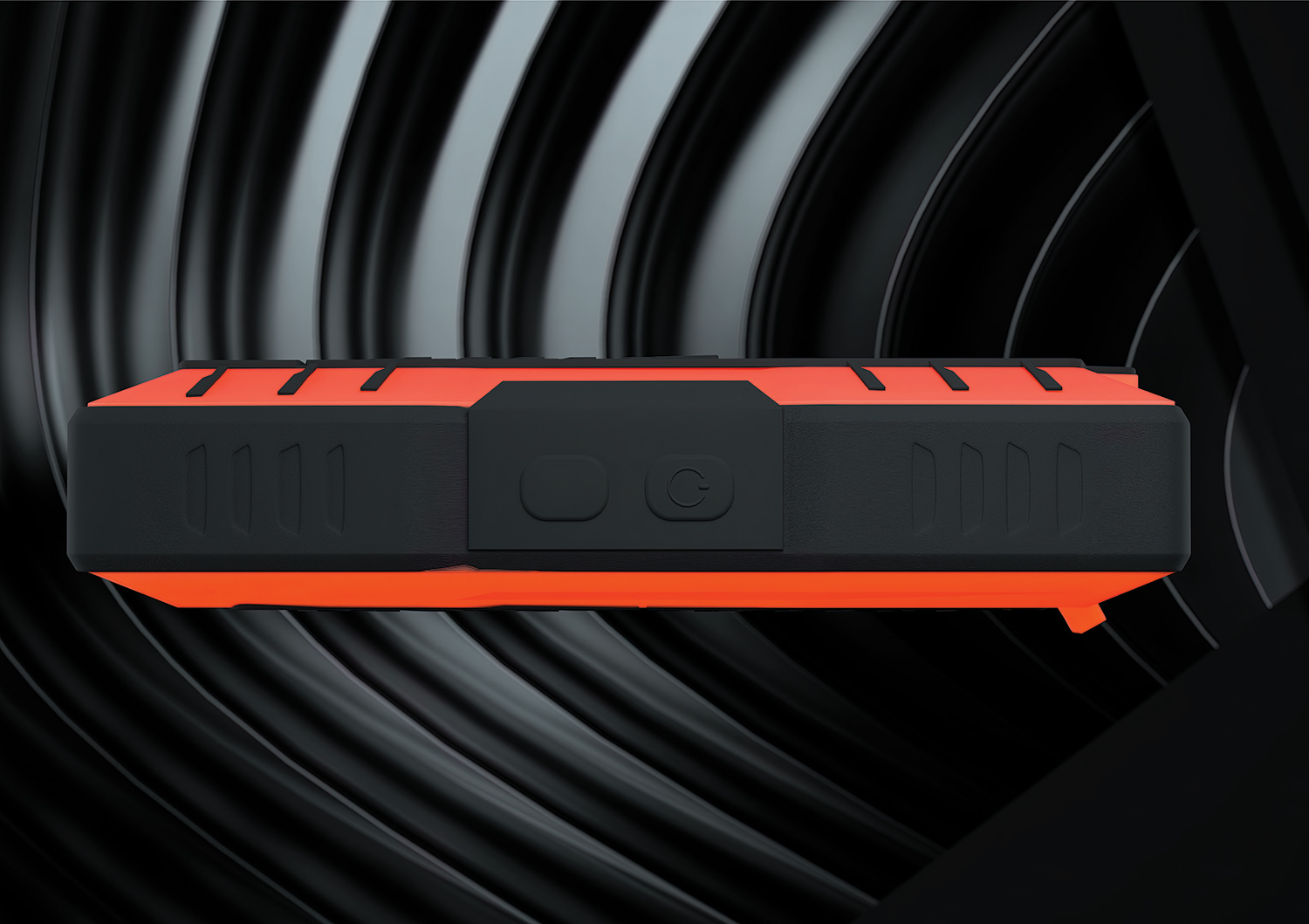

Product Introduction F03A-BX is a Wearable Drone Detector that can detect common UAV flight control chart transmission frequency band signals, can be operated alone, can also be used with UAV countermeasures gun, navigation decoy equipment, omnidirectional jamming equipment. The equipment is light weight, non-radiation, very suitable for individual soldier use.
Product Advantage 1, passive detection, no electromagnetic pollution; Small and light, easy to carry;
2, can work alone, can also cooperate with interference countermeasures gun;
3, built-in GPS/ Beidou positioning module and 4G-LET module, can communicate with the command center in real time, upload their own position and alarm data;
4, flexible layout control, to achieve urban low-altitude grid early warning management, support a maximum of 200 detection equipment networking;
5, support equipment remote maintenance and upgrade;
6, with perfect power management function, can display the remaining power in real time and have low power alarm function;
7, can detect the UAV frequency band, variety, including the market mainstream high-definition UAV, WiFi UAV and DIY UAV, crossing machine;
8, with light, sound, vibration multiple alarm warning function; Support alarm ring and light associated signal strength functions;
9. Provide OLED display, which can display the number, model and frequency of UAV in real time; The user can adjust the signal recognition threshold (sensitivity).
Product Parameter | Projects | Nominal Value | Remarks |
| Detection frequency | 1000-1500 MHz | |
| 2400-2500 MHz | |
| 5150-5950 MHz | |
| Detecting signal type | OFDM/FM/WiFi | |
| Detecting distance | 0.5 km ~ 1 km | |
| Postback mode | 4g/ 5g | Supports up to 200 equipment to form a grid to communicate with the command center |
| Response time | < 6s | |
| The number of multi-target alerts | 32 | |
| Power supply | 3.7V/ 3.3Ah | |
| Charging | 2 hours | |
| Battery life | ≥ 8 hours | 100% standby |
| ≥ 6 hours | 25% active 75% standby |
| Protection class | IP65 | |
| Work environment | -40°C~+55°C | |
| Volume | 120×68×33mm | |
| Weight | 348g | Accessories such as chargers are not included |
Product Use (1) It can be linkage used with drone gun, navigation decoy and omnidirectional jamming equipment.
(2) A user can freely hold this equipment without fixed posture due to its built-in omnidirectional antenna.
