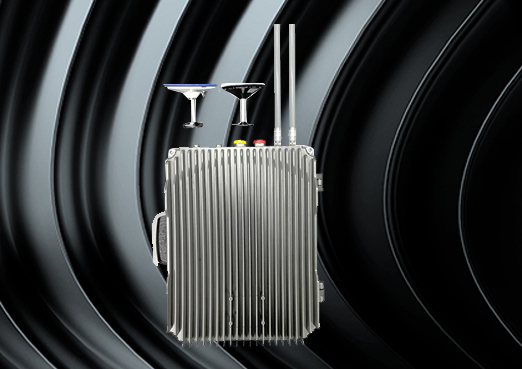

Anti Drone Detection and GNSS Spoofing Equipment
G02-F

Product Introduction
Anti Drone GNSS Spoofing Equipment adopts advanced satellite navigation simulation technology, generate and transmit fake GNSS signals. enabling the drone to land in place, drive away the drone, or guide the drone to land at the preset point.
By deploying anti drone GNSS spoofing equipment, a hemispherical control area centered around the equipment is formed. Drones, in the area, can’t take off and drones can’t enter the area from outside, which can counter drone clusters. It can be deployed in a distributed manner across multiple sites, forming a drone control network that covers a larger control area which is easy to manage. It can be used for large-scale event support and also for protection in key areas. The equipment can be used alone or in conjunction with drone low altitude detection radar and drone detection and countermeasures equipment. It can be deployed in mobile, vehicle mounted, and fixed modes. The equipment has passed explosion-proof certification and is particularly suitable for special environmental applications such as petroleum and petrochemical.

Product Features
(1)Detection and Spoofing all-in-one
(2)GPS/GLONASS/BDS jamming
(3)Effective range: 0.5-1.5km
(4)24-hour unattended working

Product Parameter
1. Detection
(1)Frequency Range: 1.1-1.4GHz, 2.4GHz, 5.8GHz
(2)Horizontal launch angle: 360°
(3)Effective range: 1.0-2.5km
(4)After detecting the drone signal, it will automatically warn and open the GNSS spoofing equipment

2. Spoofing
(1)After the equipment generates stimulated satellite navigation signal, positional signal of UAVs will switch to the simulated coordinate thus cannot fly, land or return as usual
(2)The equipment can transmit fake signals to make the UAV move in a straight line or circular motion. The motion speed, center, and diameter can be set
(3)Simulating generation of GLONASS/GPS/BDS signals, coordinate can be customized
(4)Effective range: 0.5-1.5km
(5)Horizontal launch angle: 360°
(6)Operation time: 24-hour unattended working
(7)Software support download and loading of ephemeris
(8)Effect of electromagnetic intensity to human: comply with GB8702-2014 standards; equipment and antenna are 1m in front of human body, electromagnetic intensity < 0.1v/m (signal range: 1550MHz ~ 1650MHz)

3. General
(1)Communication port: Ethernet (RJ45)
(2)Power: AC220V
(3)Dimensions ≤550mmX450mmX220mm
(4)Weight: ≤15Kg
(5)Environment temperature: -25℃-+55℃
(6)Storage temperature: -40℃-+70℃
(7)Ingress Protection: IP65
