G02-SH

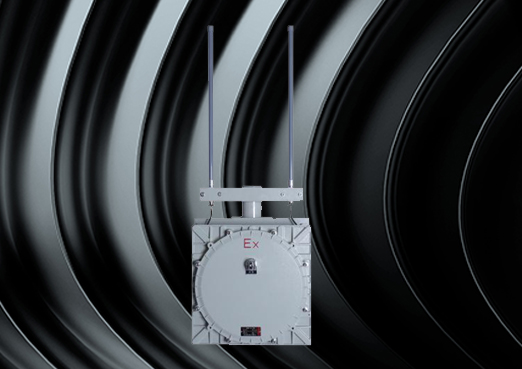

Anti Drone GNSS Spoofing Equipment
G02-SH

Product Introduction
The anti-UAV GNSS spoofing device uses advanced satellite navigation simulation technology to generate and transmit pseudo-GNSS signals, so that the drone can land on the spot, drive the drone, or guide the drone to land at a preset point.
By deploying anti-UAV GNSS spoofing equipment, a hemispherical control area centered on the equipment is formed. The UAV cannot take off in the area, and the UAV cannot enter the area from the outside, which can antagonize the UAV cluster. It can be deployed across multiple sites in a distributed manner to form a larger and easier-to-manage UAV control network. It can be used for the protection of large-scale activities as well as the protection of key areas. The device can be used alone or in conjunction with UAV low-altitude detection radar, UAV detection and countermeasures equipment. It can be deployed in mobile, vehicle and fixed mode. The equipment has passed the explosion-proof certification and is especially suitable for special environmental applications such as petroleum and petrochemicals.

Product Features
(1)Emission power < 10mw
(2)GPS/GLONASS/BDS jamming
(3)Effective range: 0.5-1.5km
(4)24-hour unattended working
(5)Auto link with frequency detection equipment

Product Parameter
(1)After the equipment generates stimulated satellite navigation signal, positional signal of UAVs will switch to the simulated coordinate thus cannot fly, land or return as usual
(2)Simulating generation of GLONASS/GPS/BDS signals, coordinate can be customized
(3)Effective radius: > 550 meters
(4)Horizontal launch angle: 360°
(5)Signal generation power ≤ 10mW
(6)Operation time: 24-hour unattended working
(7)Proofed anti-explosion license: deployment in area as oil depot class I and class II, meet Ex de IIC T6 Gb standards
(8)Software support download and loading of ephemeris
(9)External connection of GPS for time sync
(10)Effect of electromagnetic intensity to human: comply with GB8702-2014 standards; equipment and antenna are 1m in front of human body, electromagnetic intensity < 0.1v/m (signal range: 1550MHz ~ 1650MHz)
(11)Communication port: Ethernet (RJ45)
(12)Power: AC220V
(13)Power Consumption: ≤40W
(14)Dimensions ≤550mmX450mmX220mm
(15)Weight: ≤15Kg
(16)Response time: ≤5s
(17)Environment temperature: -25℃ ~ +55℃
(18)Ingress Protection: IP65
