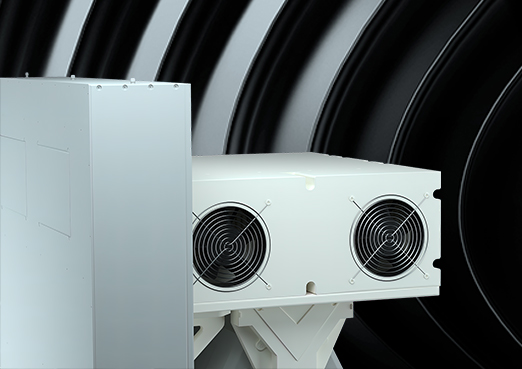

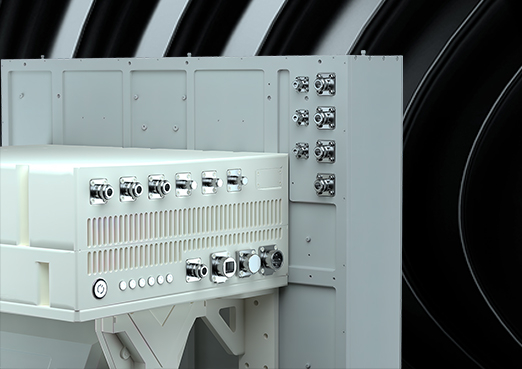

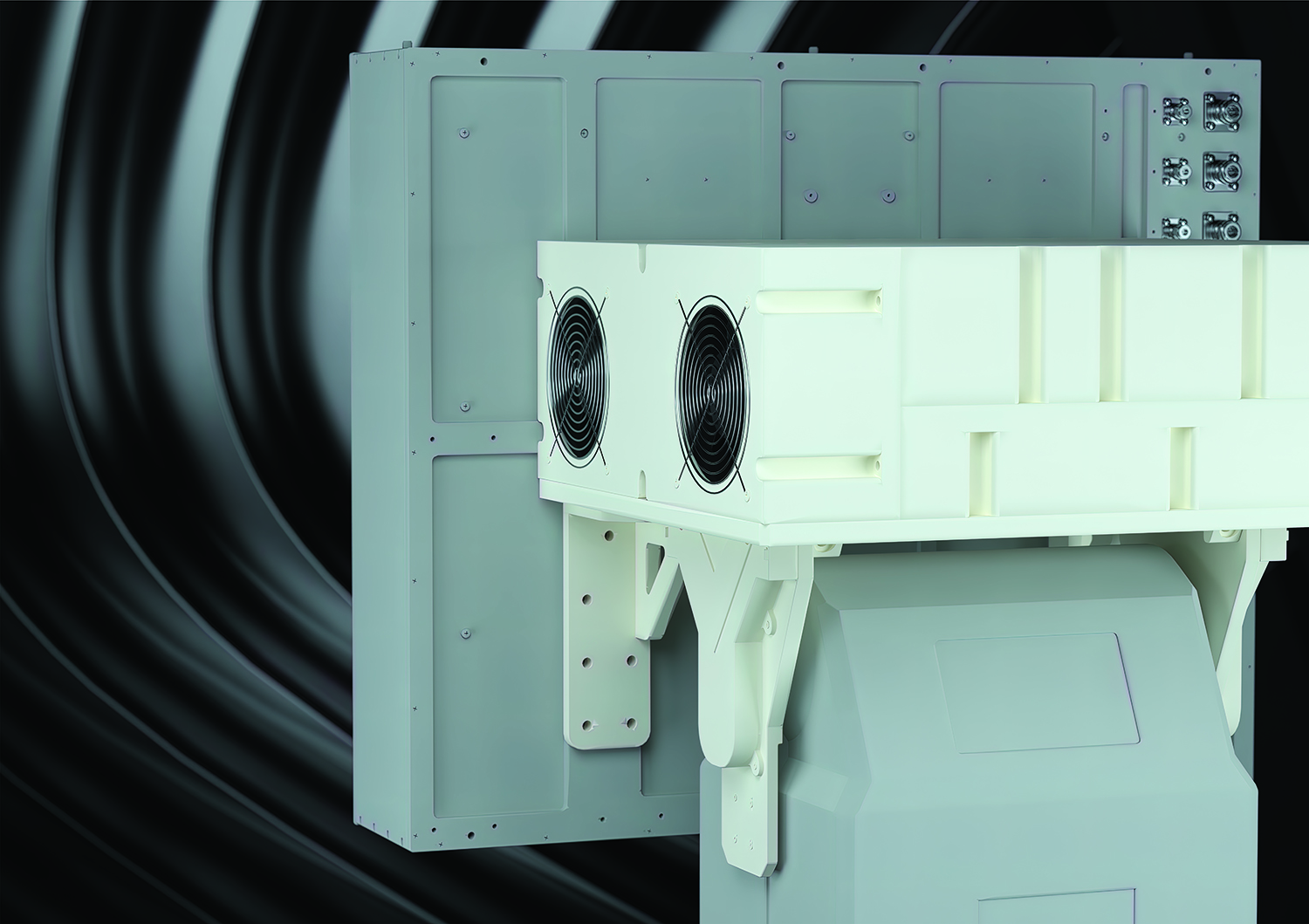

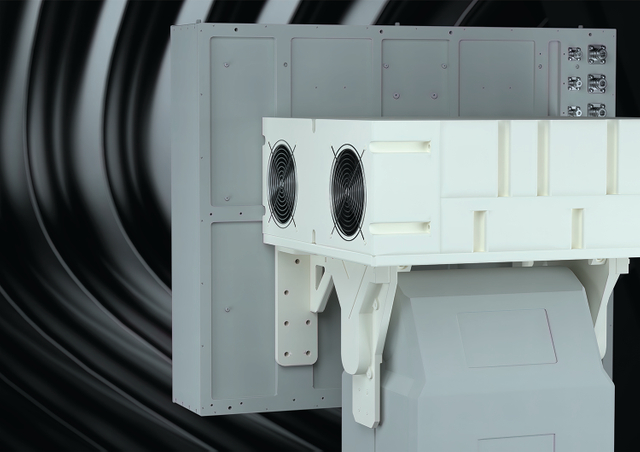

J04 is a highly effective UAVs countermeasure solution designed for long range defeat. The product is composed of countermeasure system and PTZ. The Countermeasure system adopts integrated design, including directional antennas, power amplifiers, RF modules, jamming excitation sources, spoofing excitation sources and control circuit.
J04 is used to jamming the communication signals and satellite navigation signals of UAVs, and it can also implement navigation spoofing on UAVs, so that the jammed UAVs are forced to land, be driven away, or be forced to fly to a designated location.
J04 can transmit 4 jamming or spoofing signals of different frequencies at the same time. The signal of each frequency band can be any frequency in the range of 300MHz-6000MHz. The maximum jamming distance is more than 10km, and the navigation spoofing distance is more than 30km.
The deployment mode of J04 is flexible, supporting mobile deployment, vehicle deployment or fixed deployment. The J04 can be used alone or integrated with other counter-UAV equipment.



Products Features
(1) Link to all-band detection equipment, support any countering signal within 300MHz- 6GHz
(2) Simultaneously send 4 countering signals
(3) Link equipment to radar in order to spoof UAVs to target field
(4) High jamming-communication distance ratio: 10:1
(5) Valid long distance countering, distance＞10km



 · Effective frequency bands: 300MHz- 6000MHz
 · Effective distance: ≥10km
 · Spoofing bands: BDS B1, GPS L1, GLONASS L1
 · Spoofing range: ≥30km
 · Azimuth coverage: 360°
 · Elevation coverage: -5°- 90°
 · Power supply: AC 220V
 · Operating temperature: -40°C/65℃
 · Storage temperature: -45°C/70℃
 · IP rating: IP65
 · Dimensions(W*D*H): 600*500*750mm
 · Weight: ≤70kg
