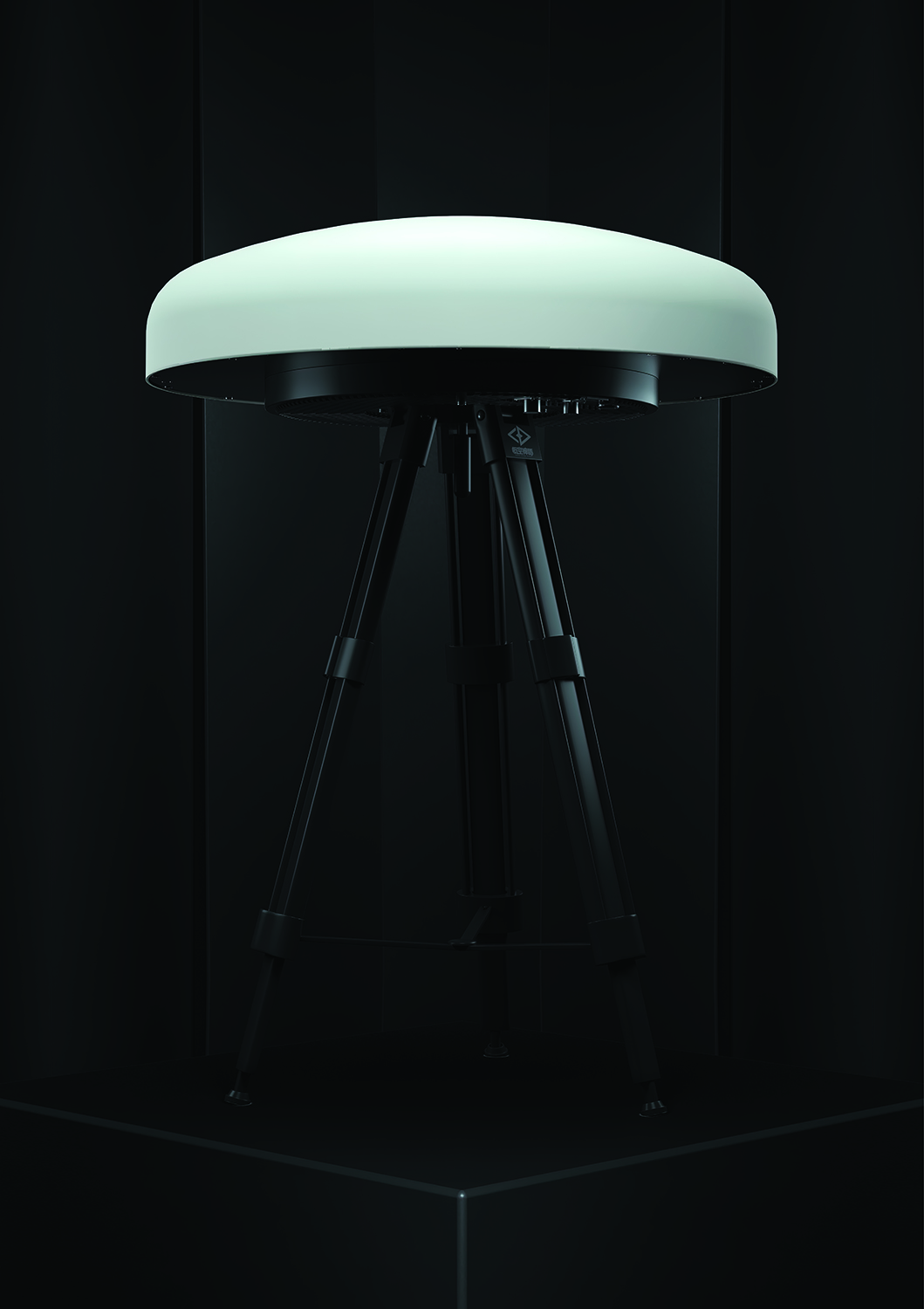

Product Introduction
All band drone detector is the core detector of a UAV control field. All band drone detector can detects and recognize control, digital transmission and image transmission signals of all UAVs within 300MHz to 6GHz frequency range. All band drone detector also can identify drone models and its direction in order to fulfill real-time connection and accurate countering of directional Anti drone equipment.

Product Features

(1) All band detector, covering both major and non-major UAVs
(2) Powerful anti-jamming function, fitting complex electromagnetic environment
(3) High extensionality, support update of UAV identification database

Product Parameter

Projects	Nominal Value	Remarks
Detection frequency range	0.9GHz
	1.4GHz
	2.4GHz
	5.8GHz
Detection angle	360°
Detection distance	3~6km	related to local electromagnetic environment
Accuracy	≤3°(RMS)
Simultaneously identifiable UAV quantity and model	quantity≥10
	model≥5
	brand≥2
Equipped with early warning capability, detection boots up with no need of UAV take-off, ground boot can be detected, minimum relative detection height	0m
Working environment	-40℃～75℃
Power supply	AC 220V/DC 12V
Response time	When UAVs appear within detection distance, the equipment’s response interval≤2s
Built-in UAV white/black list, precise recognition of permitted and nonpermitted UAVs. White-list UAVs will not trigger alarm

Product Use
(1) Suitable for security use of large-scale events as well as place defense.
(2) Could work alone or cooperate with other anti UAV equipment in formats of single unit.
(3) Could work cooperate with mobile deployment and fixed deployment.
