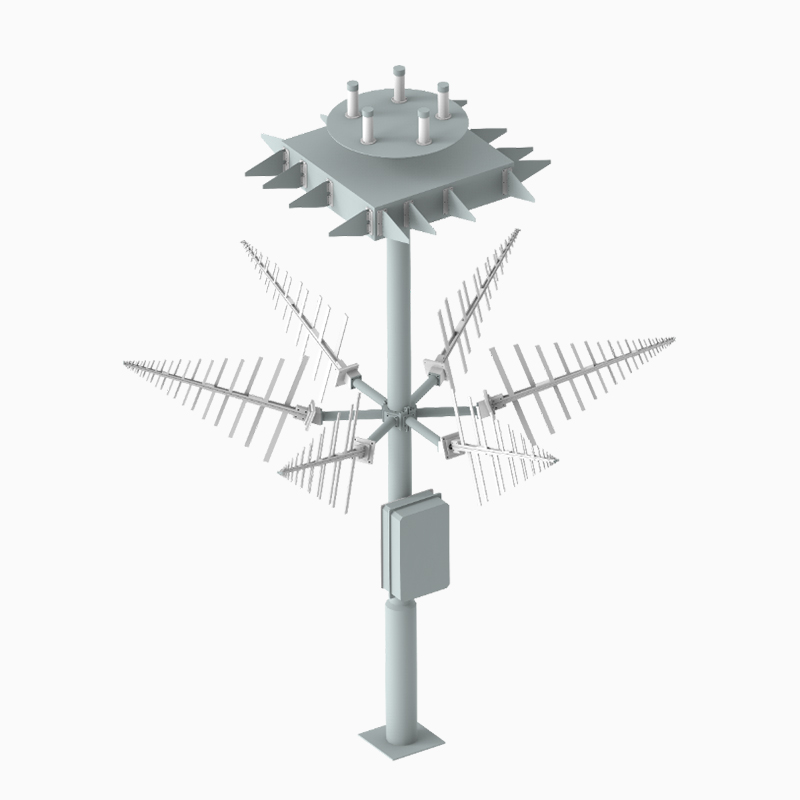

F01A Anti Drone Detector and Jammer  F01A

Product Introduction
Anti Drone Detector and Jammer is an electronic countermeasure equipment in the field of anti drone. The equipment has full-band signal detection, UAV model recognition, drive away or force the UAV to land automatically. The device solves the problem of detecting and attacking unknown frequency UAV. It solves the problem of detecting and attacking UAV clusters. It also solves the problem of UAV detection and strike in vehicle moving; Finally, the problem of UAV control for fixed point cruise is solved.

Product Features
(1) 24-hour unattended working
(2) Effective angle can be 360° or some sector
(3) Full band detection, full band interference, detection and interference all-in-one. It can detect drone signals and remote control signals; Adaptively transmit corresponding frequency interference signals based on the detected signal, fearless of non-standard frequency flying drones.
(4) Multi-sector interference: one or multi interference sectors, balancing interference distance and interference coverage, quick response speed, easy to deal with UAV clusters.
(5) Fast response speed, capable of detecting interference during vehicle travel
(6) Drone types can be identified, fewer false positives, and the drone identification library is scalable
(7) The interference distance is far, and the target can be interfered according to the radar guidance
(8) Navigation interference can be individually controlled to prevent intrusion by fixed-point cruise drones

Product Parameter
Projects Nominal Value Remarks
Frequency Range 400MHz-6GHz
Horizontal launch angle 360°
Detection range 4.0km
Scan time <2s
Detection sensitivity <100dbm
Direction finding <2°
With GPS interference mode and non-GPS interference mode,
the UAV can land in place or return to the departure point
Effective frequency bands 400MHz-6GHz adjustable
After detecting the drone signal, it can automatically modulate the corresponding interference frequency according to the detected frequency to implement interference disposal (accurate disposal)
Effective range ≥ 3.5km
Response time ≤3s
Effect of electromagnetic intensity to human comply with GB8702-2014 standards
Transmitting power ≥25W
Power AC220V/DC12V
Communication port Ethernet (RJ45)*2
witch to the simulated coordinate thus cannot fly, land or return as usual
Host Dimensions ≤600mm*800mm*100mm
Machine heigh ≤2000m
Weight ≤45Kg
Environment temperature -25℃-+55℃
Ingress Protection IP65
Wind-resisting 10 Class
