| Projects | Nominal Value |
| Laser lighting | a)12W, 810nm military grade infrared laser |
| b)Illumination angle: 0.5°～20° |
| c)Lens form: 60X F1.2-80MM ultra-short zoom patented technology |
| Action distance | Daylight: 3000m, Night: 1500m |
| Camera lens | a)22.5-755mm, F4.5～360 |
| b)FOV(H): 15.7°～0.48° |
| c)Close range: 4m |
| Camera | a)1/1.8′ star-level CMOS |
| b)0.004lux ultra-low-illumination star-level |
| c)Resolution: 1920*1080 |
| d)Video Coding: H. 265/h. 264/MJPEG, supports multiple streams |
| e)Video rate: 32kbps ~ 16Mbps, 60Hz 30FPS/s |
| f)Fog transmission, Strong light suppression, 128dB wide dynamic, electronic anti-shake, 3D digital noise reduction, strong light suppression, anti infrared overexposure |
| Housing | a)Materials: aluminum alloy material, Stainless steel fasteners, resistant to strong winds |
| b)Structure: integrated design with wiper |
| c)Surface spraying: PTA three anti-corrosion coating, anti seawater corrosion |
| d)Can work in low and high temperature environments |
| e)Military grade aviation waterproof plug |
| Head structure | a)Load: 50kg |
| b)Rotation angle: horizontal 360° continuous rotation, pitch: -45°-+45° |
| c)Rotation Speed: horizontal 0.01°/s-30°/s, pitch 0.01 °/s-15°/s |
| Interface | a)1-way RJ45,10/100base-t adaptive, 1-way AC24V/DC24V |
| b)Support TCP/IP, support ONVIF and GB28181 |
| c)Support Pelco-P, Pelco-D(Baud: 2400/4800/9600/19200) |
| Power | a)Total power consumption: 150W |
| b)Operating Voltage: DC24V |
| Machine data | a)Weight: ≤45kg |
| b)Dimensions: 362mm*581mm*680mm |
| Environmental adaptation | a)Operation Temperature: -25℃-+55℃ |
| b)Storage Temperature: -40℃-+70℃ |
| c)Working humidity: ≤90% |
| d)IP66 |

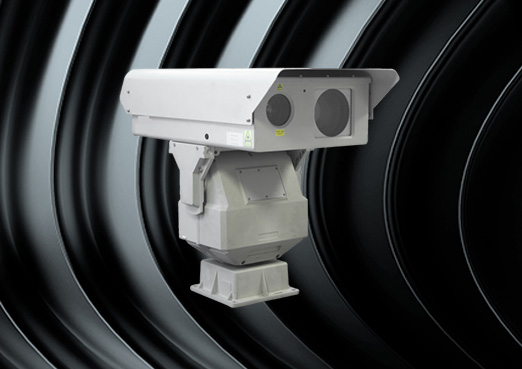

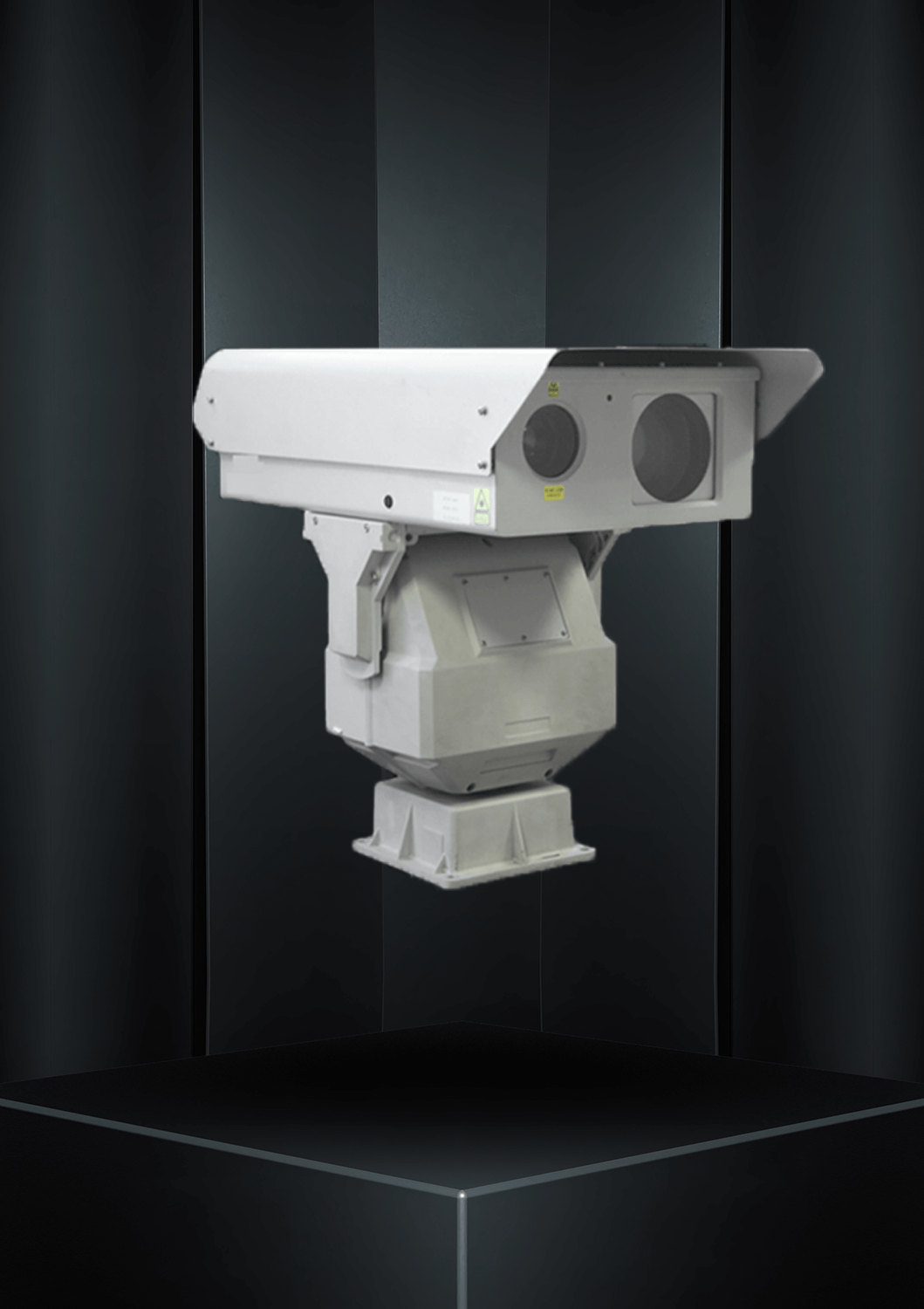

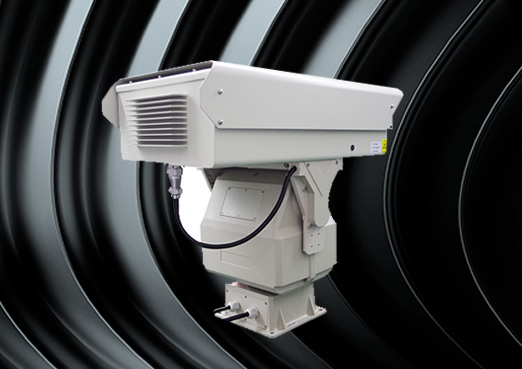

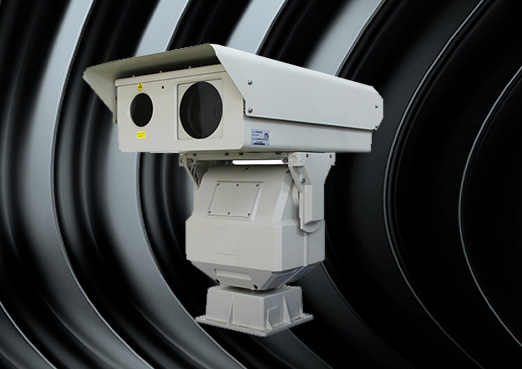

Long Range HD Laser Monitor
